HYDRAULIC HAMMER RAMMER R04P 285 KG | 3CX | RAMMERR04P-3
5.0 on 5 reviews
Part Fit for 8 models
HYDRAULIC HAMMER RAMMER R04P 285 KG | 3CX | RAMMERR04P-3
12 months warranty on All spare parts offered by MAQ PARTS
12 months warranty on All spare parts offered by MAQ PARTS
Features:
- Weight: 320.00
- Can return: Yes
- Stocks: SF: 0 | VN: 0 | PL: 0 |
Sale
Notify when the part is available.
| ID | 724772 |
|---|---|
| Part number | RAMMERR04P-3 |
| Brand | RAMMER |
| Models | 3CX | 432E | U50-3 | |
| Stocks | SF: 0 | VN: 0 | PL: 0 | |
| Replace numbers | |
| Manufacturer/Brand | RAMMER |
| Delivery days | 7 DAYS |
The price
After loggin in
Delivery 5-7 days
Categories
-
Deliveries worldwideWe ship parts worldwide
-
12 months warrantyfor every product
-
100% SafetyOnly secure payments
-
Hot OffersDiscounts up to 50%
Grip dimensions:
45 mm
175 mm
340 mm

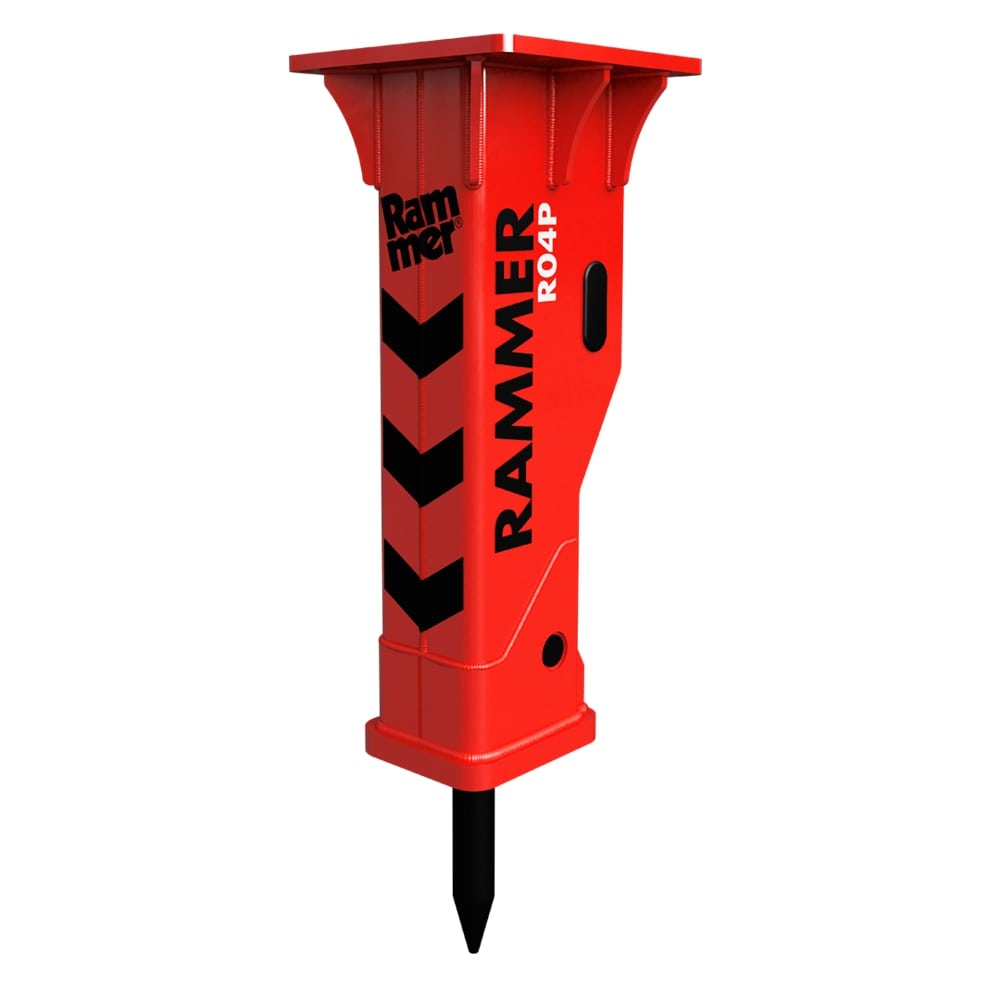

The Rammer R04P is your partner for a wide range of breaking duties. The 285 kg hammer is suitable for carriers between 2.0-4.4 tons.
The R04P has been designed with proven Rammer features and standards. This hammer offers more than just excellent power-to-weight ratio, it offers the quality reassurance that only a true Rammer hammer can.
SPECIFICATION
| Minimum working weight, flange mounted *1 | 285 kg | 630 lb |
| Weight | 232 kg | 510 lb |
| Impact rate (frequency) | 550 - 1050 bpm | |
| Operating pressure | 70 - 130 bar | 1015 - 1885 psi |
| Oil flow range | 30 - 60 l/min | 7.9 - 15.9 gal/min |
| Pressure relief setting *2 | 150 bar | 2175 psi |
| Pressure relief max | 170 bar | 2465 psi |
| Back pressure max | 20 bar | 290 psi |
| Input power | 13 kW | 17 hp |
| Tool diameter | 60 mm | 2.36 in |
| Pressure line connection (IN) | BSPP internal 3/4" | |
| Return line connection (OUT) | BSPP internal 3/4" | |
| Pressure line size, min. inner diameter | 15 mm | 0.59 in |
| Return line size, min. inner diameter | 15 mm | 0.59 in |
| Optimum oil temperature | 40 - 60 °C | 104 - 140 °F |
| Allowed oil temperature range | -20 - 80 °C | -4 - 176 °F |
| Optimum oil viscosity at operating temperature | 30 - 60 cSt | |
| Allowed viscosity range | 20 - 1000 cSt | |
| Skid steer, robot weight, range *3 | 2.0 - 3.7 t | 4400 - 8157 lb |
| Carrier weight, range *3 | 3.0 - 6.0 t | 6600 - 13228 lb |
| Noise level, guaranteed sound power level, LWA *4 | 114 dB | |
| Noise level, measured sound power level, LWA *4 | 118 dB | |
Looking for the perfect attachments for your construction machinery? Look no further HYDRAULIC HAMMER RAMMER R04P RAMMERR04P is available in Mak Parts! With a wide range of options available, including digging buckets, grading buckets, quick hitch, hydraulic hammers, and more, we have everything you need to get the job done. Our high-quality attachments are compatible with over 40 brands of construction machinery, including RAMMER. Don't waste time searching for spare parts elsewhere – order from Mak Parts today and experience the convenience and reliability of our products. Trust us to provide excellent quality and competitive prices. Upgrade your machinery now and achieve outstanding results! If you have any questions about HYDRAULIC HAMMER RAMMER R04P RAMMERR04P you can contact us.
HYDRAULIC HAMMER RAMMER R04P 285 KG | 3CX | RAMMERR04P-3 models
JCB
3CX
CATERPILLAR
432E
KUBOTA
U50-3
JCB
8052
JCB
8060
JCB
8065
JCB
8080
RAMMER
R04P
Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
| Product | Part number | Price |
|---|---|---|
|
HYDRAULIC HAMMER RAMMER R04P 285 KG | 3CX | RAMMERR04BH-2 |
RAMMERR04BH-2 |
There are not replace numbers.
-
